Current transducer MB-3I-1 15A

3F current transducer with MODBUS RTU output. Three-phase 15 A AC/20 A DC. Direct.
MB-3I-1 transducer is designed to measure the strength of alternating current or direct current and to transmit the data via RS-485 port using MODBUS RTU protocol.

Ask Price!!

SKU: MAX-MB-3I-1-15A Category: I/O extension modules

Functioning
The module is designed to work with current transformer with 5 A secondary current.

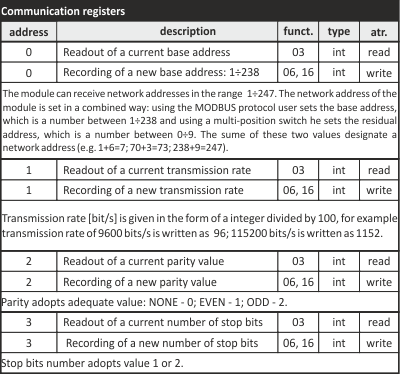

The module continuously measures the current flowing through the measurement inputs. Readout of recorded current strength and setting of all communication parameters are carried out through RS-485 port using the MODBUS RTU communication protocol.
Power up is indicated by a green LED U light. Valid data exchange between the module and the second device is indicated by a yellow LED Tx light.

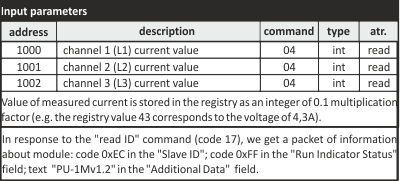

The transducer measures the effective value of TrueRMS current, which ensures high accuracy even with distorted flow.

Reset communication settings
Under cover is available code switch.
Details of resetting available in the instructions below.

Confıguration

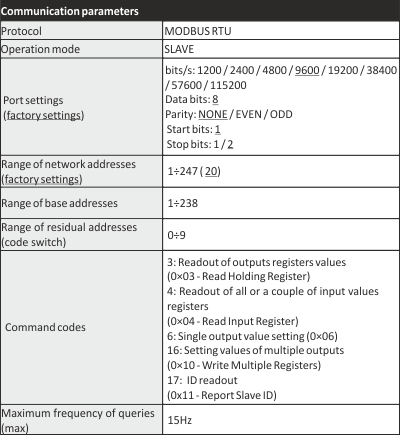

Communication parameters of MODBUS RTU protocol

Reference MAX-MB-3I-1-15A

Power supply voltage: 9÷30 V DC
WE-WY breakthrough voltage: 2,1 kV
ports: RS-485
Communication protocol: MODBUS RTU
The type of work: SLAVE
Baudrate: 1200÷115200 bit/s
Data bits: 8
Stop bits: 02-sty
Bits of parity: EVEN / ODD / NONE
Address: 1÷247
Maximum measuring error: ±0,5%
Measurement range TrueRMS / maximum voltage: 0÷15 A/285 V AC; 0÷20 A/400 V DC
Power consumption (max): 50 mA
Precision of reading the register: 0,1 A
Sampling frequency: 10 Hz
Relative air humidity (for 30: 85%
Terminal: pluggable terminal blocks 2,5 mm²
Dimensions: 1 module (18 mm)
Assembly: on rail 35 mm
Ingress Protection Marking: IP20
